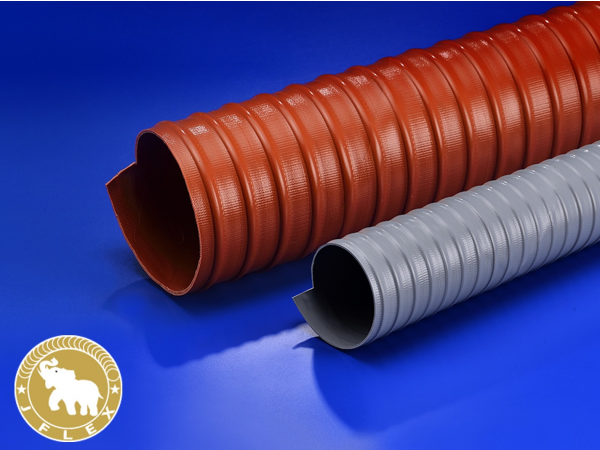

J 4-2 SILICONE HOSE

Product details

Applications:
  • electric equipment for hot and cold air
  • for granules dryers in the plastics industry
  • for printing machines, blowers and  compressors
  • for exhaust gas technology, engine construction, engine warming and military construction
Construction:
  • wall: silicone-coated sealed fiberglass fabric
  • spiral: spring steel wire integrated in wall
Material:
  • wall: silicone-coated sealed fiberglass fabric
  • spiral: spring steel wire
Standard Color:
  • red
Properties:
  • double-layer
  • smooth interio
  • good flow characteristics
  • good overpressure and vacuum tightness
  • superior heat and cold resistancelight weight
  • flame-retardant according to UL94-V0
  • de-dusting in clean room
Temperature Range:
  • -70 °C approx. to +260 °C approx.
  • short time to +280 °C approx.
Specification:
  • ø 20 to ø 203 mm


Delivery Variants:
Customer-specific product marking,further colors,diameters and lengths available on request.





    1. I.D.mm
    2. O.D.mm
    3. Over pressurebar
    4. Vacuumbar
    5. Bending Radiusmm
    6. Weightkg/m
    7. Stock Lengthsm
    8. Order No.
    1. 20
    2. 24
    3. 3.000
    4. 0.730
    5. 24
    6. 0.12
    7. 4
    8. 4-2-020-000
    1. 25
    2. 29
    3. 2.800
    4. 0.710
    5. 29
    6. 0.19
    7. 4
    8. 4-2-025-000
    1. 32
    2. 36
    3. 2.700
    4. 0.650
    5. 36
    6. 0.28
    7. 4
    8. 4-2-032-000
    1. 38
    2. 43
    3. 2.600
    4. 0.600
    5. 43
    6. 0.31
    7. 4 / 8
    8. 4-2-038-000
    1. 44
    2. 49
    3. 2.600
    4. 0.580
    5. 49
    6. 0.35
    7. 4 / 8
    8. 4-2-044-000
    1. 51
    2. 57
    3. 2.600
    4. 0.520
    5. 57
    6. 0.39
    7. 4 / 8
    8. 4-2-051-000
    1. 63
    2. 68
    3. 2.400
    4. 0.460
    5. 68
    6. 0.49
    7. 4 / 8
    8. 4-2-063-000
    1. 76
    2. 81
    3. 2.100
    4. 0.430
    5. 81
    6. 0.60
    7. 4 / 8
    8. 4-2-076-000
    1. 90
    2. 95
    3. 2.000
    4. 0.400
    5. 95
    6. 0.71
    7. 4 / 8
    8. 4-2-090-000
    1. 102
    2. 107
    3. 1.900
    4. 0.350
    5. 107
    6. 0.80
    7. 4 / 8
    8. 4-2-102-000
    1. 114
    2. 120
    3. 1.500
    4. 0.300
    5. 120
    6. 0.89
    7. 4 / 8
    8. 4-2-114-000
    1. 127
    2. 133
    3. 1.400
    4. 0.230
    5. 133
    6. 0.96
    7. 4 / 8
    8. 4-2-127-000
    1. 140
    2. 146
    3. 1.300
    4. 0.200
    5. 146
    6. 1.10
    7. 4 / 8
    8. 4-2-140-000
    1. 152
    2. 158
    3. 1.200
    4. 0.170
    5. 158
    6. 1.40
    7. 4 / 8
    8. 4-2-152-000
    1. 165
    2. 171
    3. 0.900
    4. 0.120
    5. 171
    6. 1.70
    7. 4
    8. 4-2-165-000
    1. 203
    2. 209
    3. 0.700
    4. 0.090
    5. 209
    6. 1.90
    7. 4
    8. 4-2-203-000
